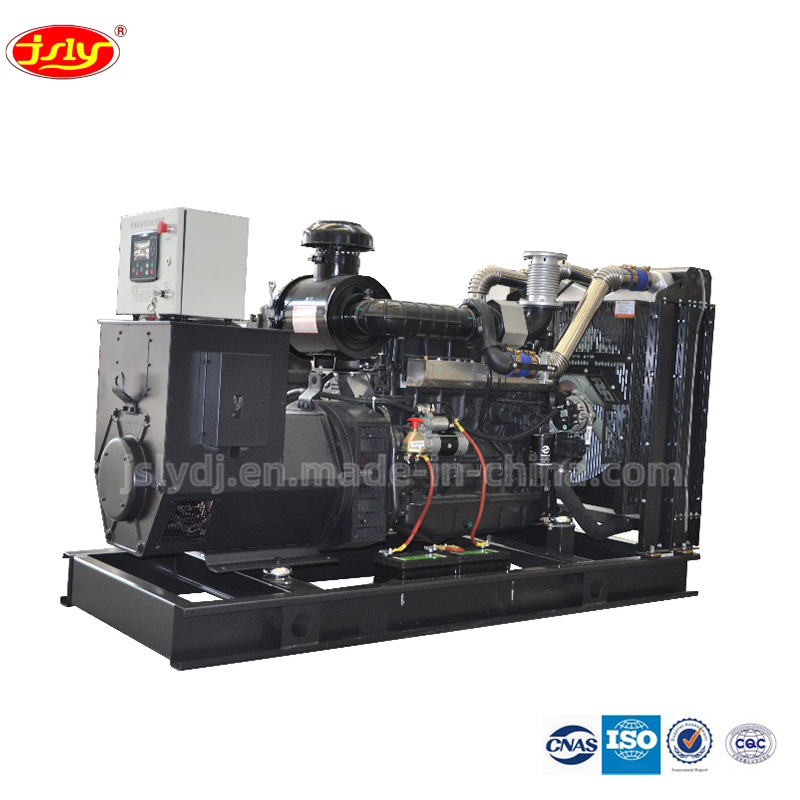

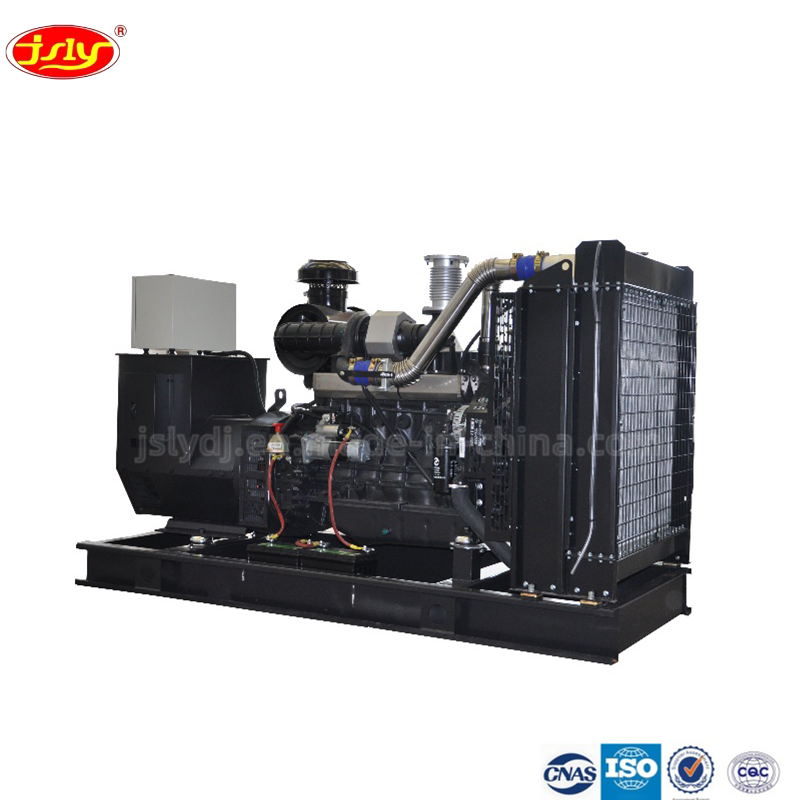

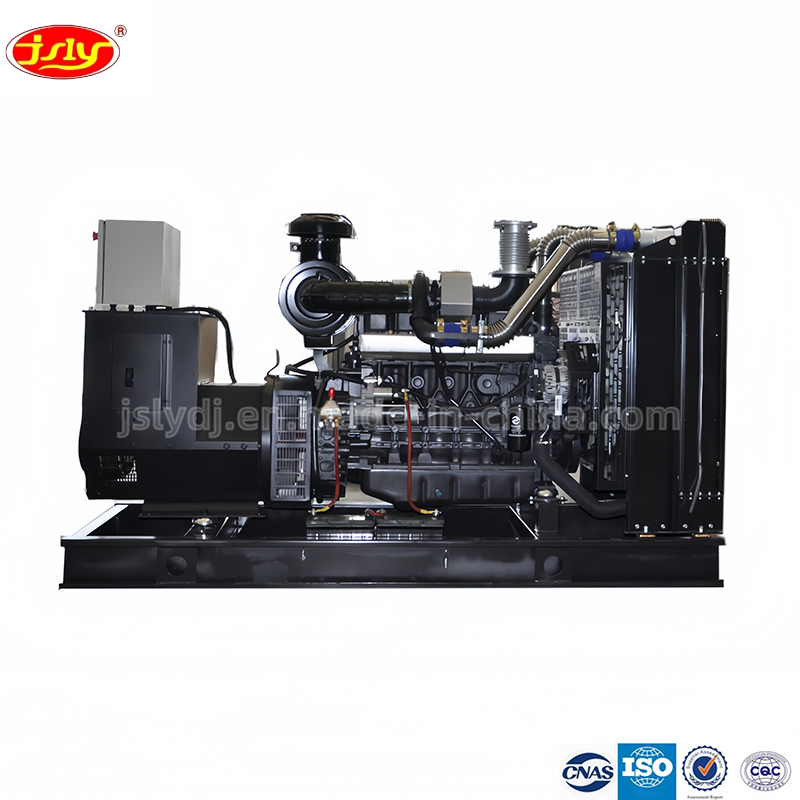

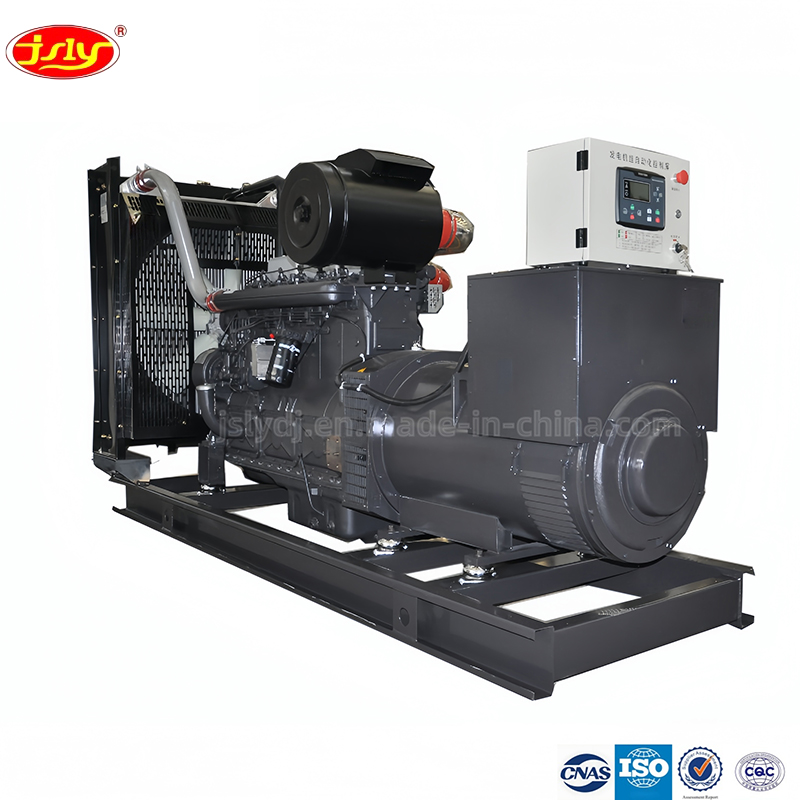

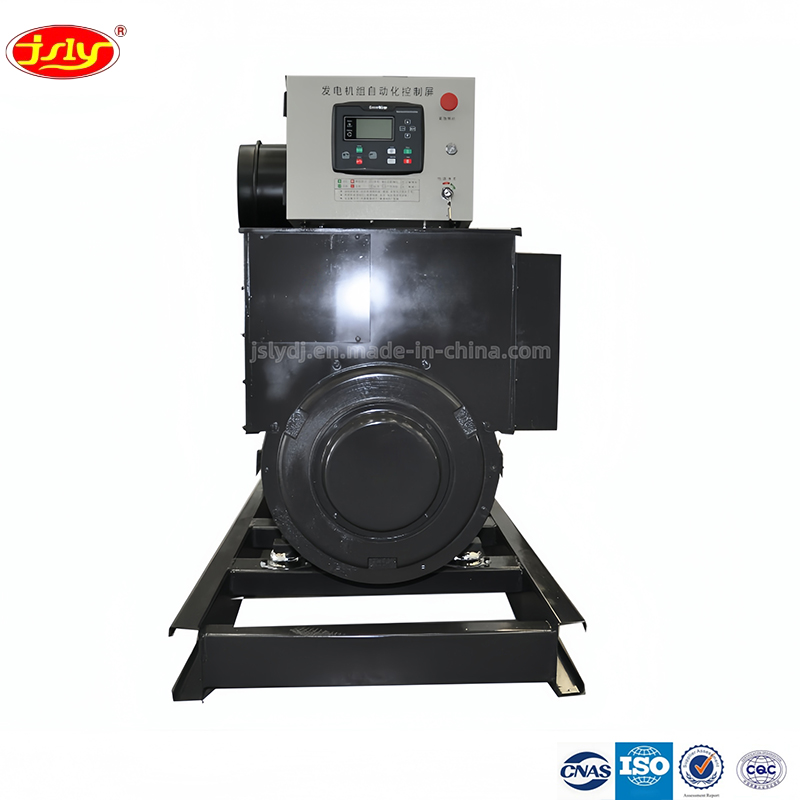

Diesel generator set rated power 120kw150kva 50Hz60Hz frequency 1500rpm1800rpm ATS optional

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Powerful power system: The engine adopts core technology, with a wide range of output power to meet the power needs of multiple scenarios. It has high speed adjustment accuracy, smooth operation, and excellent load-bearing capacity. Efficient energy conversion. Excellent fuel economy and low long-term operating costs. Superior environmental performance, with some models meeting higher environmental requirements. The whole machine is made of high-quality components and undergoes strict testing to ensure long-term stable operation.


Standard Functions

We provide one-stop service to meet all customers' needs for power generation systems and components.

All generator sets and components undergo rigorous prototype testing, precise manufacturing, and rigorous inspection.

Warranty: After 1000 hours of operation or 1 year from the date of first start-up (whichever comes first).


MODEL

50Hz/1500RPM

DieselEngine-50Hz

Primeoutput

StandbyOutput

Model

Displacement

fuelconsumptiong/kw.h

Dimensionl*w*h

(m)

Weight

(kg)

KVA

KW

KVA

KW

KH-20GF

16

20

18

23

WP2.3D25E200

2.3L

≤225

1500*700*1100

720

KH-30GF

24

30

26

33

WP2.3D33E200

2.3L

≤225

1500*700*1100

720

KH-38GF

30

38

33

41

WP2.3D40E200

2.3L

≤225

1550*800*1200

790

KH-45GF

36

45

40

50

WP2.3D48E200

2.3L

≤220

1600*800*1200

800

KH-63GF

50

63

55

69

WP4.1D66E200

4.1L

≤235

1800*800*1200

920

KH-80GF

64

80

70

88

WP4.1D80E200

4.1L

≤235

2200*900*1300

1000

KH-100GF

80

100

100

125

WP4.1D113E200

4.1L

≤235

2200*900*1300

1000

KH-125GF

100

125

120

150

WP6D132E200

6L

≤205

2200*900*1300

1500

KH-150GF

120

150

132

165

WP6D152E200

6L

≤205

2200*900*1300

1500

KH-175GF

140

175

150

188

WP6D167E200

6L

≤215

2400*900*1500

1500

KH-200GF

160

200

176

220

WP10D200E200

10L

≤215

2400*900*1500

1500

KH-225GF

180

225

198

248

WP10D238E200

10L

≤215

2400*900*1500

1500

KH-250GF

200

250

220

275

WP10D264E200

10L

≤215

2550*1000*1500

1800

KH-313GF

250

313

280

350

WP10D320E200

10L

≤205

2700*1100*1800

2500

KH-375GF

300

375

320

400

WP13D385E200

13L

≤210

3000*1100*1800

2700

KH-400GF

320

400

352

440

WP13D405E200

13L

≤215

3100*1100*1800

3000

KH-438GF

350

438

400

500

WP13D440E200

13L

≤215

3100*1100*1800

3500

KH-500GF

400

500

440

550

WP13D490E200

13L

≤215

3200*1300*1800

3800


MODEL

60Hz/1800RPM

DieselEngine-60Hz

Standbyoutput

PrimeOutput

Model

Displacement

fuelconsumptiong/kw.h

OpentypeDimensionl*w*h

(m)

KVA

KW

KVA

KW

KH-24GF

30

24

25

20

WP2.3D30E201

2.3L

≤210

1500*750*1050

KH-33GF

41

33

38

30

WP2.3D41E201

2.3L

≤216

1500*750*1050

KH-40GF

50

40

44

35

WP2.3D47E201

2.3L

≤215

1500*750*1050

KH-50GF

63

50

50

40

WP2.3D58E201

2.3L

≤215

1850*800*1100

KH-66GF

83

66

75

60

WP4.1D80E201

4.1L

≤210

1900*870*1180

KH-83GF

104

83

94

75

WP4.1D95E201

4.1L

≤216

1900*870*1180

KH-100GF

125

100

113

90

WP4.1D115E201

4.1L

≤215

2250*880*1250

KH-110GF

138

110

125

100

WP6D132E201

6L

≤215

2400*950*1510

KH-132GF

165

132

150

120

WP6D158E201

6L

≤210

2400*950*1510

KH-150GF

188

150

181

145

WP6D180E201

6L

≤210

2400*950*1510

KH-165GF

206

165

188

150

WP10D200E201

10L

≤216

2850*1040*1580

KH-198GF

248

198

225

180

WP10D238E201

10L

≤215

2850*1040*1580

KH-275GF

344

275

313

250

WP12D317E201

12L

≤215

3050*1100*1800

KH-308GF

385

308

350

280

WP10D360E201

10L

≤210

2850*1040*1580

KH-330GF

413

330

394

300

WP13D385E201

13L

≤210

3350*1150*1800

KH-460GF

575

460

500

400

WP13D510E311

13L

≤216

3350*1150*1800


Technical details of generator:

Prime output power

from 5KVA to 2500KVA

Rated voltage

120V/240V, 220/380V, 230V/400V,
254V/440V etc. other voltage is optional

Generator Phase and connecting

3 phase, 4wire

Rated frequency

50Hz/1500rpm or 60Hz/1800rpm

Alternator excited type

Brushless

Alternator Insulation

Class H

Alternator Protection

IP22

Voltage regulation

AVR automatic control

Altitude above sea level

≤1000 meters

Ambient air temperature

≤40°C


7

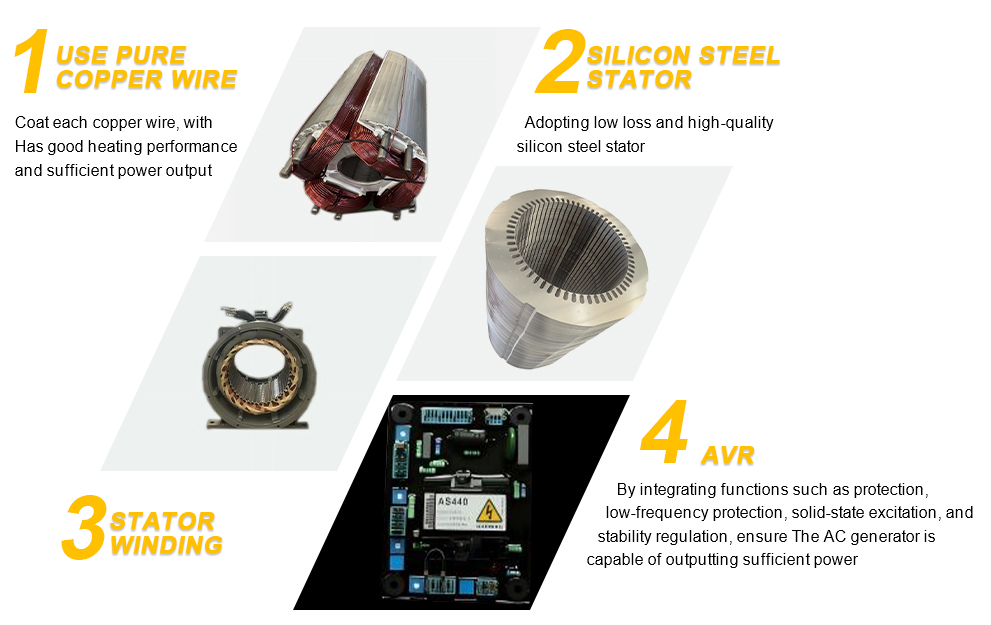

Advantages of AC Generators

Brushless excitation, built-in AVR, can be excited through permanent magnet motors or auxiliary windings,

providing more than three times the continuous current for 10 seconds. No carbon brushes, stable power

supply, extended lifespan, reduced costs, increased speed, and accelerated kinetic energy.

8



Optional Configuration

Based on different environmental requirements, we recommend the following configurations for you


1

1

1

1

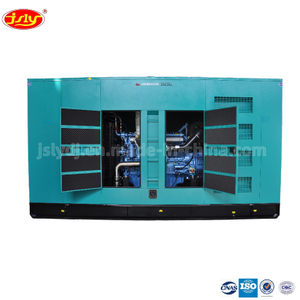

1  Silent Cover

Equipped with advanced noise reduction technology. Adopting new sound-absorbing materials that meet national standards, widely applicable to places with strict noise requirements such as hotels, hospitals, buildings, and mining areas


2  Silent Trailer

In addition to the silent canopy function, the silent trailer also has other advantages: it is easy to move and very suitable for long-distance fast emergency power supply


3  Automatic transfer switch system

The ATS system can achieve automatic conversion between two power sources, that is, when the main power source fails, the ATS generator will automatically start and switch automatically after the main power source is restored


4  Protection system

The LCD display screen can display various parameters and automatically stop and sound an alarm in case of high temperature, low oil pressure, overspeed, overclocking, overload, undervoltage starting fault, charging fault or switch fault




Nowadays, our products are widely used in many fields. They are widely used in schools, homes, engineering construction, as well as hospitals and consumer industries. These generators can not only serve as regular power sources for daily operations, but also as reliable emergency backup power sources.


We have multiple models of self-made generators to meet the different needs of different enterprises. We ensure product quality through meticulous craftsmanship. Moreover, we have established a comprehensive after-sales service system, providing all-round support for installation, debugging, and maintenance, allowing users to enjoy a worry free experience.


1

1.The product warranty period is one year or 1000 hours, whichever comes first from the date of manufacture.

2.During the warranty period, we will provide free spare parts for easily damaged AC generators caused by our production quality or raw materials.

3.After sales maintenance service: We create files for users and provide them with follow-up services and regular follow-up visits.


For more details, please contact us!
